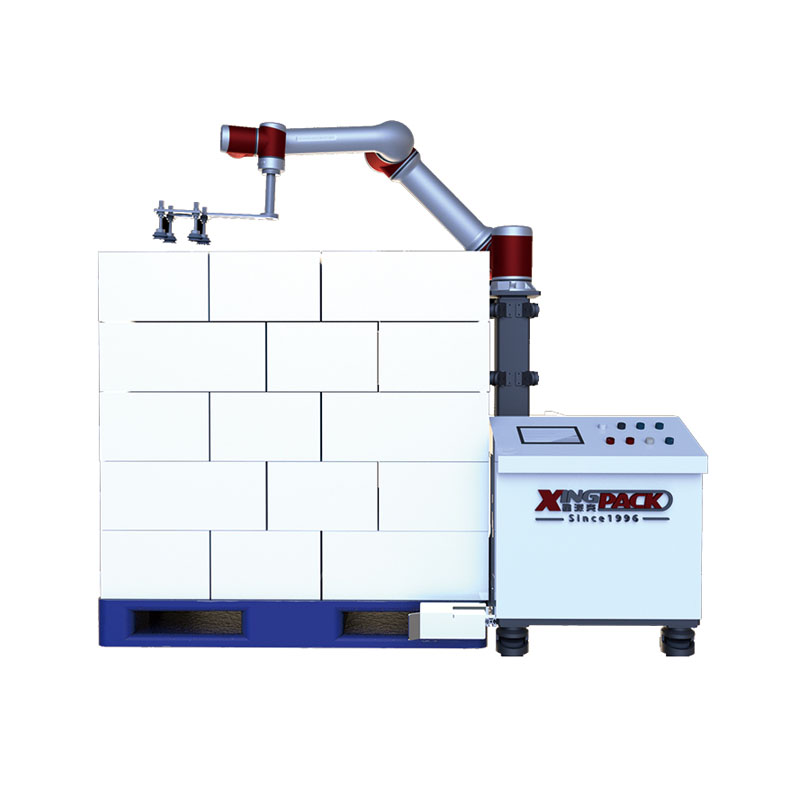

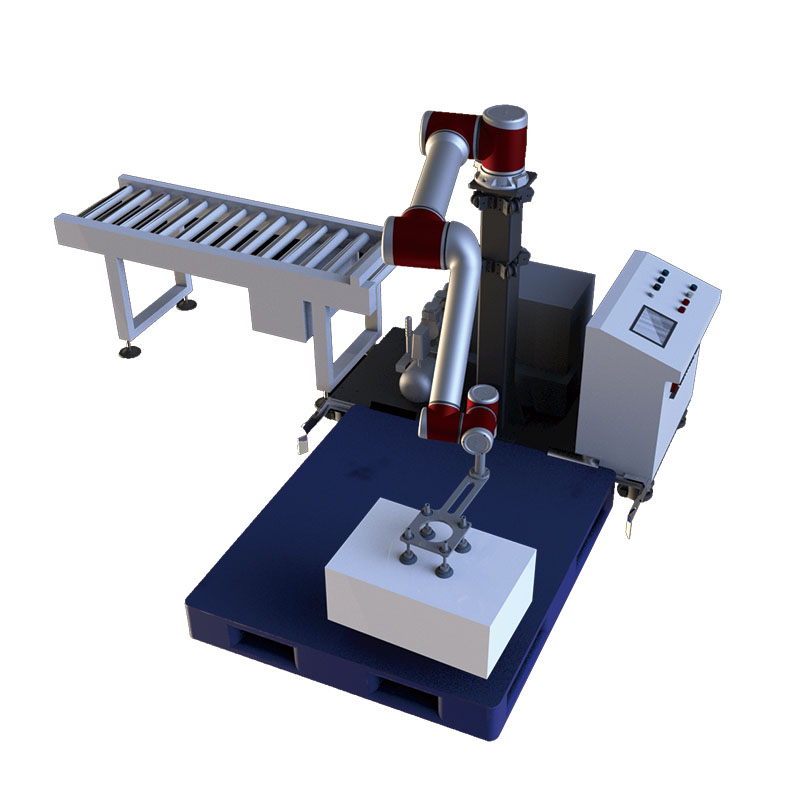

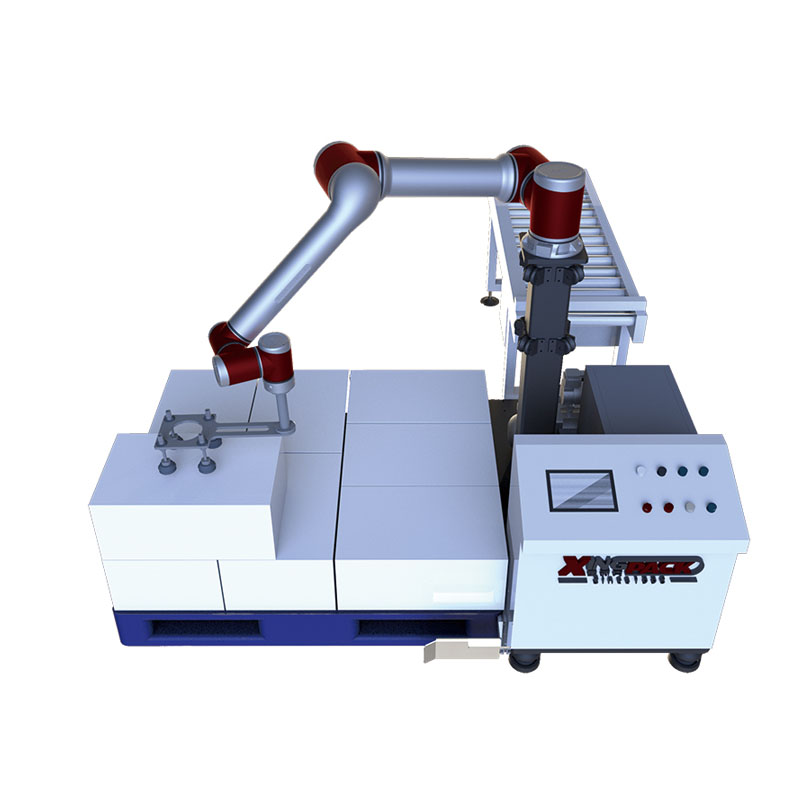

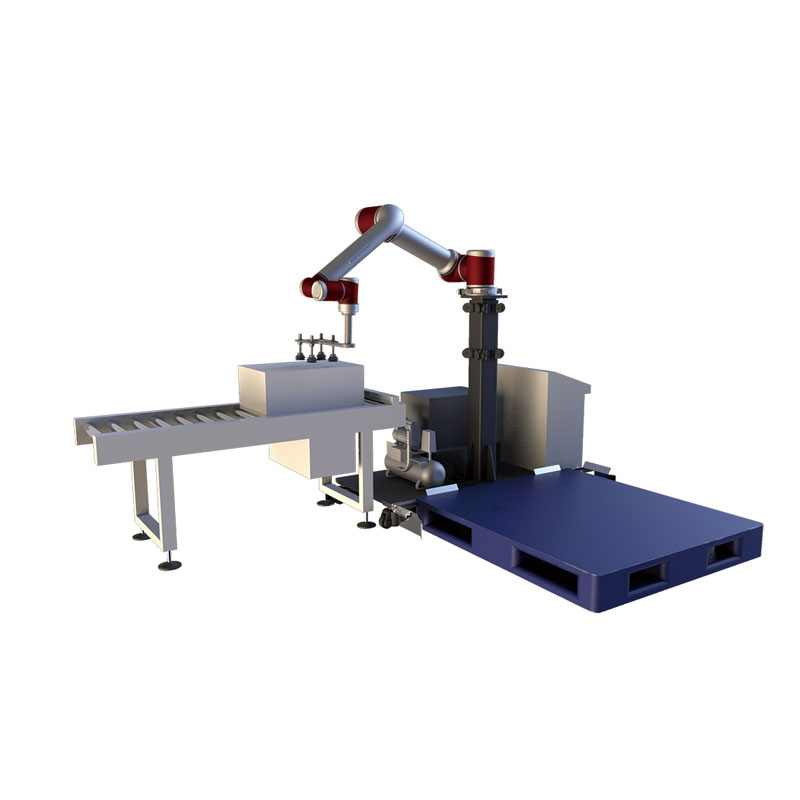

The moveable cooperative robot palletizer combines collaborative robot (cobot) and moveable platform, and is applied flexibly in different line ends.
Easy to Use: It is flexible to move and easy to use.
Safe and Flexible: The robot is collaborative robot with 80NM torque feedback, it will stop when touching a person. The programming is easy by repeating of manual routes, which can be realized by hand pulling and placing.
Open System: Common communication ports, wireless connection and remote assistance.
Applicable Products: Cartons, Plastic Frame, Bags, Boxes etc.
Power Supply: 380V/50Hz/3Ph, 2KW
Air Supply: 0.6MPa, 0.3m3/min
Machine Dimensions: L1500*W900*H1500mm
Max Palleting Size: L1300*W1300*H1700mm
Machine Weight: 400KGS
Loading Weight: 3/7/12KGS, (Maximum 20Kgs is optional)
Palletizing Speed: Max. 6 cycles per minute.
Working Radius: 1327mm
Repetition Accuracy: +/- 0.03mm
Degree of Freedom: 6
Working Temperature: 0-50oC
IP grade: IP54
Communication Method: TCP/IP, Modbus TCP/RTU
Robot Label: CE (SGS: SHEM190901681201MDC), 13849
